A Comprehensive Homeowner’s Guide for New South Wales Residents

When acquiring a property in NSW, you effectively inherit any existing termite protection measures that the previous owner or builder may have implemented. Regrettably, the effectiveness of these measures can vary significantly, ranging from highly effective to completely outdated or entirely absent.
In fact, most homeowners are unaware of the current termite protection system installed in their property, its age, or whether it requires renewal.

This extensive guide is designed to empower you with the knowledge necessary to evaluate the termite protection your home possesses, acquaint you with the pertinent regulations in NSW, and point out critical warning signs to be vigilant for in order to prevent potentially costly termite infestations in the future.

Recognise the Importance of Termite Protection in New South Wales

The areas surrounding Sydney, particularly the Hills District, North Shore, Western Sydney, and coastal suburbs, have been classified as high-risk termite zones.
This classification necessitates that the NSW Building Code mandates all new homes to include a Termite Risk Management (TRM) system during the construction phase.

However, once you become the homeowner, there is often no clear guide available that informs you about the specific system that has been installed to safeguard your property.

Let’s explore the specifics of termite protection systems in greater detail.

Uncovering the Termite Protection System Installed in Your Home

Here are the six most effective methods to ascertain the termite protection system embedded within your property.

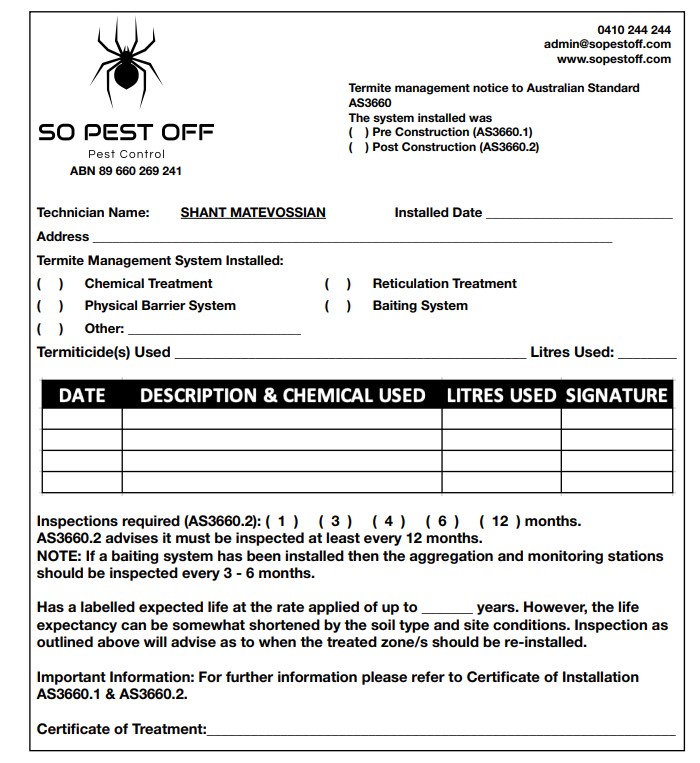

1. Locate the Required Termite Certificate (Mandated by NSW Law)

As per the NSW Building Code and AS 3660.1, builders are obligated to provide the following documentation:

• A certificate detailing the installed termite management system
• A resilient notice placed within the home
• The installation date
• The contact information of the installer
• The recommended maintenance schedule

Where to find this certificate:

• Inside the electrical meter box
• Under the kitchen sink cupboard
• Within the laundry cupboard
• On the garage wall near the switchboard

This label may indicate the presence of:

• Physical barriers (Kordon, HomeGuard, TermSeal)
• Concrete slab edge exposure
• Granite/stone barriers
• Chemical soil treatments
• Termite reticulation systems (Termidor, TermX, Altis, Termguard)

If the sticker is absent, it does not necessarily indicate that no system is in place; it could merely mean that it was never recorded or has fallen off.

2. Identify Reticulation System Refill Points Around Your Property

A reticulation system is designed to effectively distribute termiticide throughout your property using underground pipes.

Signs indicating the presence of a reticulation system may include:

• White, black, or green plastic caps positioned along the perimeter of the home
• Access points located near garden edges, driveways, or patios
• A labelled refill port that protrudes slightly above ground level

If you observe these features, you likely have:

• Termidor® reticulation
• FipForce® system
• TermX
• Altis
• Termguard

It is important to note that termite reticulation systems require refilling every three years (for premium termiticides) or every one to two years (for more economical chemicals).

3. Examine Your Pre-Purchase Pest & Building Report for Termite Protection Details

If you purchased your home within the last few years:

• The inspector should have documented the specifics of the termite protection system.
• Many reports may include photographs of barriers, slab edges, or reticulation lines.

However, pre-purchase reports can occasionally lack comprehensive information, making it wise to confirm findings with a licensed termite specialist.

4. Inspect Slab Edges for Visibility and Accessibility

Properties constructed on concrete slabs should exhibit visible slab edges unless an alternative approved system has been implemented.

What to look for includes:

• A clearly visible concrete edge between the ground and the brickwork
• No soil or garden obstructing the weepholes
• No decking installed flush against the wall

If slab edges are clearly exposed, this may serve as the termite protection — however, they must remain unobstructed to function effectively.

5. Investigate the Presence of Physical Barriers Typically Found in Newer Homes

During the construction phase, builders often install various physical termite barriers such as:

• Kordon (orange/yellow sheet material)
• HomeGuard (blue plastic sheeting)
• TermSeal
• Stainless steel mesh
• Graded stone layers

Clues indicating the presence of a physical barrier include:

• A label within the meter box identifying the brand
• A visible sheet layer surrounding pipe penetrations in the slab
• Notes in the building documentation provided by the builder

These systems typically protect the structure for the life of the building — however, regular termite inspections are still essential to ensure ongoing effectiveness.

6. Consult a Termite Specialist for a Thorough Compliance Check

If you are unable to identify:

• A label
• A certificate
• A refill point
• Any documentation

…your home may lack active termite protection.

A qualified termite technician can:

• Identify any physical barriers present
• Detect any old chemical treatments that may still be effective
• Scan for reticulation systems
• Inspect for exposure at slab edges
• Provide a detailed assessment of your termite risk

They can also advise if your home requires:

• A new chemical barrier
• A reticulation system refill
• A baiting system
• A pre-sale termite certificate

Understand NSW Legal Requirements for Effective Termite Protection

1. Builders Must Implement a Termite Risk Management System for All New Dwellings

(In accordance with the NCC & AS 3660.1)

2. A Durable Notice Must Be Installed (label in the meter box or cupboard)

3. Homeowners Are Responsible for Maintaining the System

Even with a barrier in place, annual termite inspections are essential under Australian Standards (AS 3660.2). Comprehensive information is available regarding:
Termite Risk Management Systems for Homes in NSW

What Steps Should You Take if You Cannot Identify Your Termite Protection System?

If you lack documentation or visible systems, it is prudent to assume:

You may not be protected.

Termite hotspots in Sydney include:

• The Hills District
• North Shore
• Northern Beaches
• Hawkesbury

A straightforward termite inspection can determine your risk level in under an hour.

When Should You Consider Installing a New Termite Barrier for Your Property?

Consider the installation or updating of termite protection if:

• Your reticulation system has not been serviced in over three years
• No certificate is available
• You cannot locate any records
• You are preparing to sell or renovate
• You have observed mud tunnels, timber damage, or the presence of flying termites

A premium chemical barrier using Termidor® or FipForce® can protect your home for up to eight years, making it one of the most effective solutions available on the market.

Essential Reminder: Confirm Your Termite Protection Today

Many homeowners are often astonished by how little they understand about their termite protection system.
Fortunately, the process of uncovering this information is straightforward when you know where to look.

Start your search by thoroughly checking:

• Your meter box
• Under the kitchen sink
• Builder documentation
• Slab edges
• Reticulation caps

If you are still uncertain, schedule a termite inspection; this is a minor investment compared to the potential costs arising from termite damage.

If you need assistance in identifying your termite system,
So Pest Off can conduct a thorough inspection, provide a detailed diagnosis, and develop an extensive termite protection plan to ensure your home remains secure.

Frequently Asked Questions Regarding Termite Protection Systems

How can I confirm if my home has a termite protection system installed?

Most homes in NSW should display a termite protection label located inside the electrical meter box, kitchen sink cupboard, or garage. This label typically specifies the installed system, the installer’s information, and the maintenance dates. If no label is present, search for reticulation refill points around the home, exposed slab edges, or physical barrier materials. A termite inspection can verify the system if documentation is unavailable.

What documents should accompany my home if a termite system was installed?

You should possess a termite management certificate, a durable notice (typically found inside the meter box), and documentation from the builder or pest control company. These documents will outline the type of system installed, the installation date, and the maintenance schedule.

Is it possible to determine what system I have without paperwork?

Yes. A qualified technician can identify physical barriers, chemical barriers, or reticulation systems during an inspection. They can also assess whether old chemical treatments are still effective and if the property requires new protection.

Where are termite reticulation refill points typically situated?

They are often found along garden edges, near paved areas, alongside driveways, or around the external perimeter walls. Refill caps can be identified as white, black, or green plastic ports that are slightly elevated above the ground.

Does NSW law mandate termite protection for all homes?

Yes. The NSW Building Code requires that all new homes have a Termite Risk Management (TRM) system installed during construction. This system must comply with AS 3660.1 and include a durable notice that outlines the type of protection and necessary maintenance.

What if the previous owner did not maintain the termite protection system?

If maintenance has not been performed, the system may no longer function effectively. A termite specialist will evaluate the condition of the system and may recommend a refill, installation of a new chemical barrier, or additional monitoring based on the level of risk involved.

How often should termite systems be examined in NSW?

According to Australian Standards (AS 3660.2), annual termite inspections are required, irrespective of the system installed. Homes located in high-risk areas, such as the Hills District or Western Sydney, may benefit from inspections every six to twelve months.

What should I do if I cannot identify any termite system at all?

If you cannot find any barriers, documentation, or refill points, it is safest to assume that you have no active protection. A termite inspection will confirm your risk and assist in selecting the most suitable option, such as a chemical barrier, baiting system, or reticulation installation.
