Concrete Floor Thickness for Installing a Car Hoist

Crucial Considerations for Installing a Reliable Car Hoist in Your Garage

If you are considering the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets the required specifications. A robust and stable foundation is not only vital for the effective operation of the hoist but also paramount for ensuring the safety of your vehicles and anyone using the equipment. Adequate preparation and strict adherence to installation guidelines can significantly enhance both the performance and longevity of your hoist, making it a worthwhile investment for any car enthusiast.

Most car hoists necessitate a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is critical as it facilitates the even distribution of weight from both the vehicle and the hoist, thereby minimising the risk of potential cracking or sinking over time. For heavier-duty hoists, it is advisable to consider a thicker concrete slab, potentially reaching up to 150mm (6 inches), to guarantee optimal performance, stability, and safety during operation.

Step-by-Step Guide to Determine the Ideal Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a vital element in ensuring the safe installation and dependable operation of a car hoist. Several factors must be meticulously considered when assessing the appropriate depth for your slab to ensure it can adequately support the loads it will be subjected to during use. Gaining a comprehensive understanding of these factors can not only help you avoid costly mistakes but also enhance the safety of your garage setup, making for a more effective working environment.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists impose significant stress on the concrete floor beneath them; therefore, it is crucial to understand the total weight your concrete floor must support. This consideration goes beyond just the weight of the vehicle and encompasses the additional weight of the hoist itself, which can contribute a considerable load to the floor. Accurately calculating these weights is vital for a successful installation.

A standard passenger car generally weighs between 1,500 to 2,000 kg, while the hoist may add an extra 500 to 1,000 kg. Furthermore, it is prudent to include extra weight as a safety buffer to ensure that the structure can handle unforeseen circumstances, such as additional tools or equipment being used in conjunction with the hoist.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is usually adequate. However, if you plan on lifting substantially heavier vehicles, it may become necessary to consider a thicker slab to ensure safety and stability during operation. Engaging with a structural engineer is a wise decision, as they possess the necessary expertise to provide tailored advice and assist you in calculating the precise thickness needed based on your unique circumstances and requirements.

Understanding Different Types of Car Hoists and Their Concrete Thickness Requirements

It is essential to recognise that various types of car hoists come with distinct requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners looking to incorporate a car hoist into their garage, each with its own unique characteristics and installation needs.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. Properly planning this installation is crucial to ensure that the hoist operates safely and efficiently.

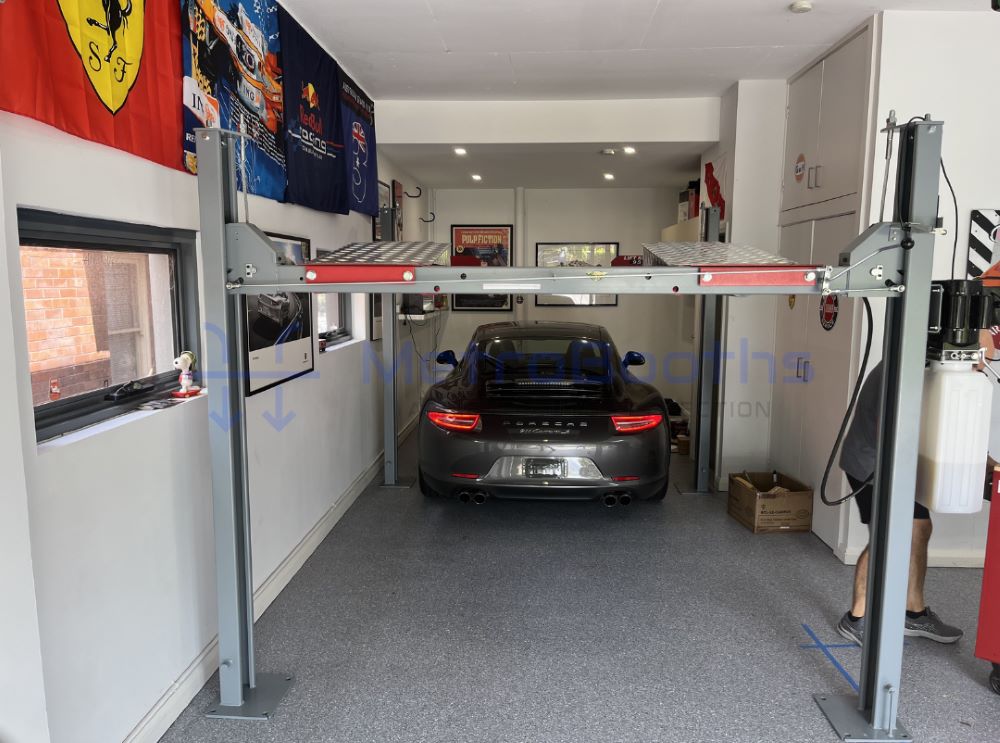

Conversely, four-post lifts tend to distribute weight more evenly over a larger area, allowing them to function effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This understanding is vital for your planning and installation process, as it can influence the overall safety and effectiveness of your hoist.

Always consult the manufacturer's specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is crucial for optimal performance and longevity, ensuring that your investment serves you well for years to come.

Keep in mind that these recommendations serve as general guidelines; your specific needs may vary depending on the configuration of your garage and the types of vehicles you intend to lift. Tailoring your approach to your specific situation will yield the best results.

The Significance of Concrete Strength and Reinforcement Techniques in Hoist Installation

The strength of your concrete is just as critical as its thickness. Stronger concrete can often be effectively utilised at a thinner depth while still providing adequate support for heavy loads, making it particularly relevant in the context of a car hoist installation. Achieving the right balance between strength and thickness is essential for a successful setup.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting, ensuring that your installation can withstand the rigours of regular operation.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor. Consequently, this could allow you to utilise a thinner slab while still ensuring it can effectively support heavy loads during operation, optimising both safety and cost.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, making it an ideal choice for budget-conscious homeowners who still want to ensure safety and durability.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in mitigating the formation and propagation of small cracks over time, greatly enhancing the longevity of your installation and ensuring it remains functional for years to come.

Vital Installation Considerations for Ensuring Successful Car Hoist Operation

When installing a car hoist, meticulous site preparation and consistent floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and ensuring your garage operates smoothly.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use. Thorough preparation will pay dividends in the long run.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days before installation. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, which is crucial for the safety of the operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide you with the necessary guidance.

Fundamental Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could adversely affect the functionality of your hoist. Regular monitoring is key to long-term success.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues that compromise safety. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, extending its lifespan and enhancing safety.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage, contributing to a hassle-free experience.

Think about applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment that pays off over time.

Common Inquiries Regarding Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, helping you make informed decisions for your installation.

What is the Minimum Concrete Thickness Required for a Two-Post Lift Installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation, ensuring the integrity of your installation.

What Specifications Must a Concrete Slab Meet for a Four-Post Hoist Installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It’s wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety during use.

Is It Safe to Install a Car Hoist on a Concrete Floor That Is Less Than 100mm Thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards for both the vehicle and the operator. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation.

What Slab Thickness Is Generally Recommended for Vehicle Lift Systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, protecting your investment.

What Weight Can a 100mm Thick Concrete Floor Support During Hoist Operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring a safe installation.

What Factors Should Be Considered When Calculating Concrete Thickness for Heavy Lifting Equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, making your garage a safer and more functional space.
